USB-C Cable Insertion Durability & Mating Cycle Rating Guide 2026

When specifying a USB-C Cable for industrial, automotive, or high-uptime environments, insertion durability is a specification that directly determines total cost of ownership. The USB Implementers Forum (USB-IF) defines minimum mating cycle requirements for each USB4 Cable and legacy connector type, but real-world performance varies dramatically depending on materials, plating, and manufacturing tolerances. This guide explains mating cycle ratings, test methods, failure modes, and how to select cables that survive 10,000+ insertions in production environments.

Mating cycle rating is the number of insert/extract operations a USB-C receptacle or plug can withstand while maintaining specified electrical and mechanical performance. Standard rating: 10,000 cycles for USB-C (USB-IF spec). Industrial variants: up to 25,000 cycles. This guide covers test standards, factors affecting durability, how to verify rated cycles, and why cheap cables fail prematurely.

Understanding USB-C Mating Cycle Specifications

The USB Type-C connector specification (USB 3.2 & USB4) mandates a minimum durability of 10,000 mating cycles for both plug and receptacle. This is a significant improvement over legacy USB-A (1,500 cycles) and USB-B (Micro-USB: 10,000 cycles but with much lower mechanical robustness). The 10,000-cycle rating means that after 10,000 insert/extract operations, the connector must still meet all electrical and mechanical specifications defined in the USB-IF compliance document.

For Thunderbolt 4 Cable and Thunderbolt 5 Cable assemblies, the same 10,000-cycle minimum applies, but the signal integrity requirements at 40 Gbps and 80 Gbps make durability even more critical. A worn connector with increased contact resistance can cause insertion loss to exceed the 40 GHz (for Thunderbolt 5) eye diagram mask, leading to link training failures and intermittent disconnections.

Test Methods and Standards for Durability Validation

USB-IF Compliance Test Specification

USB-IF Section 6.1.2 (Connector Engagement / Disengagement) defines the formal test procedure. A calibrated insertion/extraction machine performs cycles at a rate of 500 to 1,000 cycles per hour, with a dwell time of 5-10 seconds between insertions. Contact resistance is measured at 0, 5,000, and 10,000 cycles. Maximum allowed contact resistance change: +20 mΩ from initial value.

IEC 60512 and EIA-364 Standards

Beyond USB-IF, industrial USB 3.2 Cable assemblies are often validated to IEC 60512-9-1 (electromechanical components — test methods for mating cycles) and EIA-364-09 (insertion/withdrawal cycling). These standards add environmental exposure: thermal shock, humidity, and dust ingress testing performed before and after mating cycle testing to verify robustness in harsh conditions.

Factors That Determine Real-World Durability

Not all USB-C cables rated for 10,000 cycles will actually achieve that in the field. The following factors have the largest impact on actual service life:

Contact Spring Material and Plating

The contact springs inside a USB-C plug are typically phosphor bronze or beryllium copper, plated with gold (0.76 μm minimum for USB-IF compliance). Gold plating prevents oxidation and provides a stable contact resistance over thousands of cycles. Cheap cables use nickel or tin plating, which oxidizes quickly and can fail before 1,000 cycles in humid environments.

Receptacle vs. Plug Wear

The USB-C receptacle (female) on a device typically wears faster than the plug (male) on the cable. This is because the receptacle’s contact springs undergo more stress during each insertion. When designing docking stations or test fixtures that see multiple cable swaps per day, specifying a high-cycle receptacle (25,000+ rating) is essential.

Cable Strain Relief and Flex Life

Insertion durability also depends on the cable’s strain relief where it enters the plug housing. A poorly molded strain relief concentrates bending stress at the cable-entry point, causing the internal wires to fracture after several thousand insertions, even if the connector itself is still electrically functional. USB 3.0 Cable assemblies with overmolded TPE strain reliefs tested to 5,000+ flex cycles show significantly lower failure rates in field deployments.

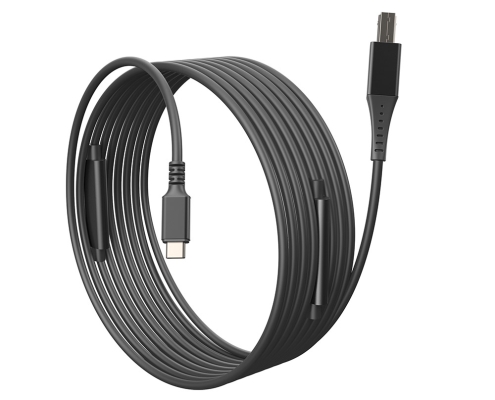

USB-C Cable durable connector” class=”ei-article-img” loading=”lazy”>

How to Verify Mating Cycle Ratings in Practice

When sourcing Eilinks Electronics USB-C cables for production, request the following documentation to verify durability claims:

• Test report from a USB-IF authorized lab (Allion, Granite River Labs, or COMPUTEX) showing cycle count and contact resistance curves
• TDR (Time Domain Reflectometry) measurements before and after cycling to verify impedance stability
• High-speed eye diagram at 10 Gbps / 40 Gbps before and after 5,000 cycles to confirm signal integrity is maintained
• Cross-section micrographs of contact springs showing plating thickness and uniformity

For an EPR cable (Extended Power Range, 240W rated), the mating cycle test also includes a simultaneous power delivery test: 5A or 6A current is passed through the VBUS pins during cycling to verify that contact resistance does not increase due to thermal cycling of the contact interface.

Selecting the Right Durability Rating for Your Application

Choose the mating cycle rating based on the expected cable swap frequency:

Conclusion

Insertion durability is a critical but often overlooked specification when selecting a USB 2.0 Cable or high-speed USB 4.0 Cable for production use. Insist on gold-plated contacts, request USB-IF compliance test reports, and match the cycle rating to your application’s swap frequency. Eilinks Electronics provides fully tested USB-C Cable assemblies with certified 10,000+ cycle durability, complete test documentation, and custom options for industrial and automotive environments.
